Place of Origin : Hubei, China
Price : $3,200/units >=1 units
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders






| Announcement of parameters of four barrel cleaner | | | | |||
| Items | | Parameters | | |||
| Technical parameters | Product model number | HTT1200DZH-11 | | |||
| | Full vehicle dimensions (L * W * H)mm | 3020 * 1500 * 1630 | | |||
| | Carriage dimensions (L * W * H)mm | 1500 * 1200 * 600 | | |||
| | Load weight kg | 275 | | |||
| | Preparation mass kg | 245 | | |||
| | Wheel base mm | 1320 | | |||
| | Wheelbase mm | 2050 | | |||
| | Maximum climb grade | 15 . or higher | | |||
| | Minimum ground clearance mm | ≥100mm | | |||
| | Number of buckets | Four 240L national standard garbage cans | | |||
| Electric and gas system | Speed km/h | 53 | | |||
| | Range km | 50km | | |||
| | Single battery capacity, number | 48V/60V maintenance-free battery | | |||
| | Standard voltage V | 48V/60V | | |||
| | Walking motor power W | 1000W | | |||
| | Electronic control system | 18 tube dual bank intelligent dual mode controller | | |||
| | Tire Specifications | 3.75-12 Front wheels 3.75-12 rear wheels | | |||
| | Front shock absorption system | Φ43 telescopic tube type front shock absorbers | | |||
| | Rear shock absorber system | Use plus heavy leaf spring 5 pieces | | |||
| | Control walking mode | Turning handlebars | | |||
| | Driving style | Directional handle style | | |||
| | Brake mode | Foot mechanical connecting rod drum rear wheel brake + manual mec parking brake | | |||
| | Light Fixtures | LED lights, left and right turn signals, brake lights, running meters, electric horns, work warning lights, etc | | |||
| | Wiring harness assembly wiring method | High and low double line: high temperature line high pressure 4 low pressure 1 square | | |||
| Chassis | Transaxle | Adopt load chainless with high and low speed truck-type rear axl axle | | |||
| | Frame material | The main beam adopts 50*50*2.5mm rectangular tube, and does c electrophoresis anticorrosion and rust prevention treatment. | | |||
| | Carriage structure | Removable carriage for easy transportation | | |||







|
|

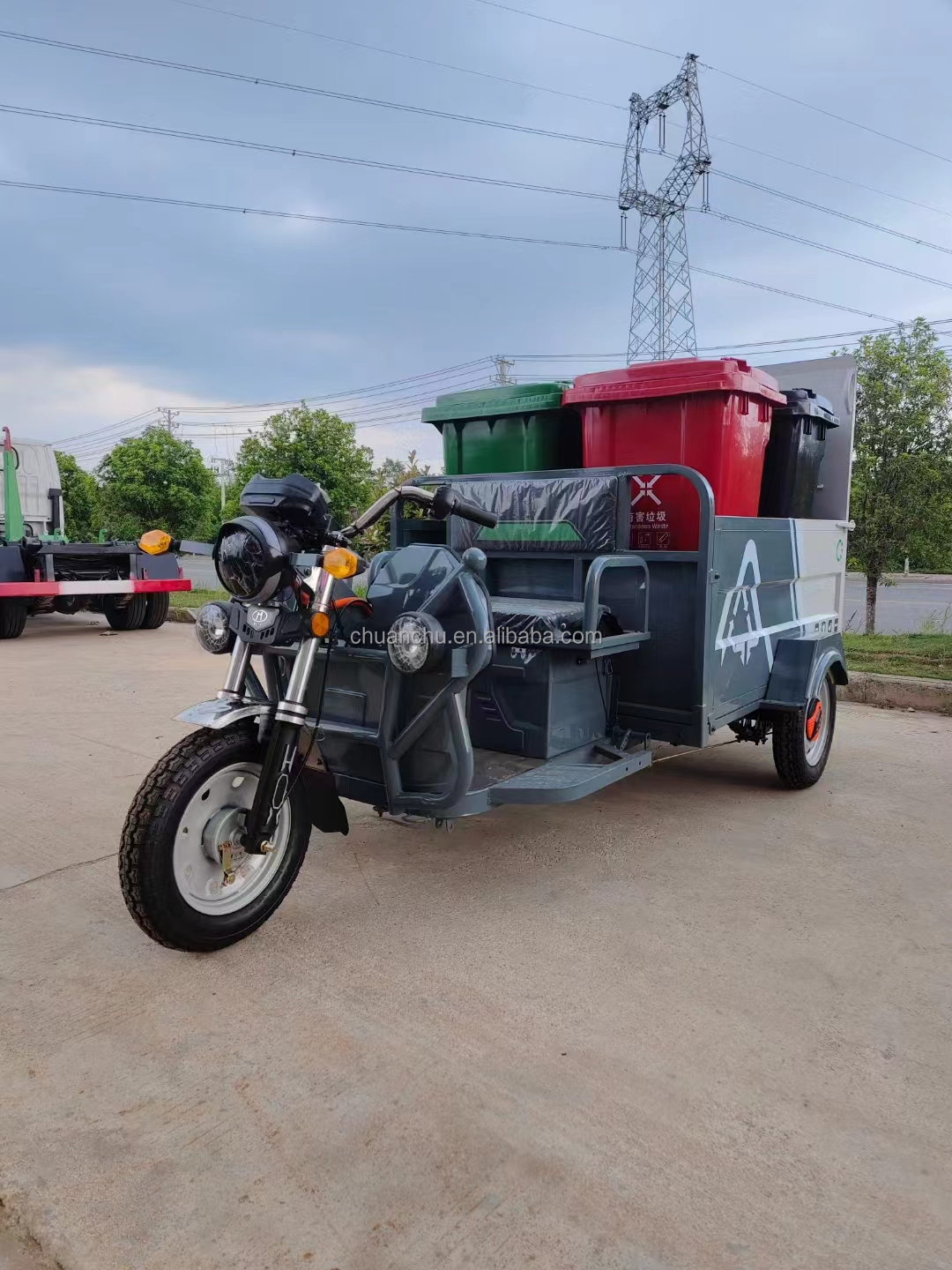

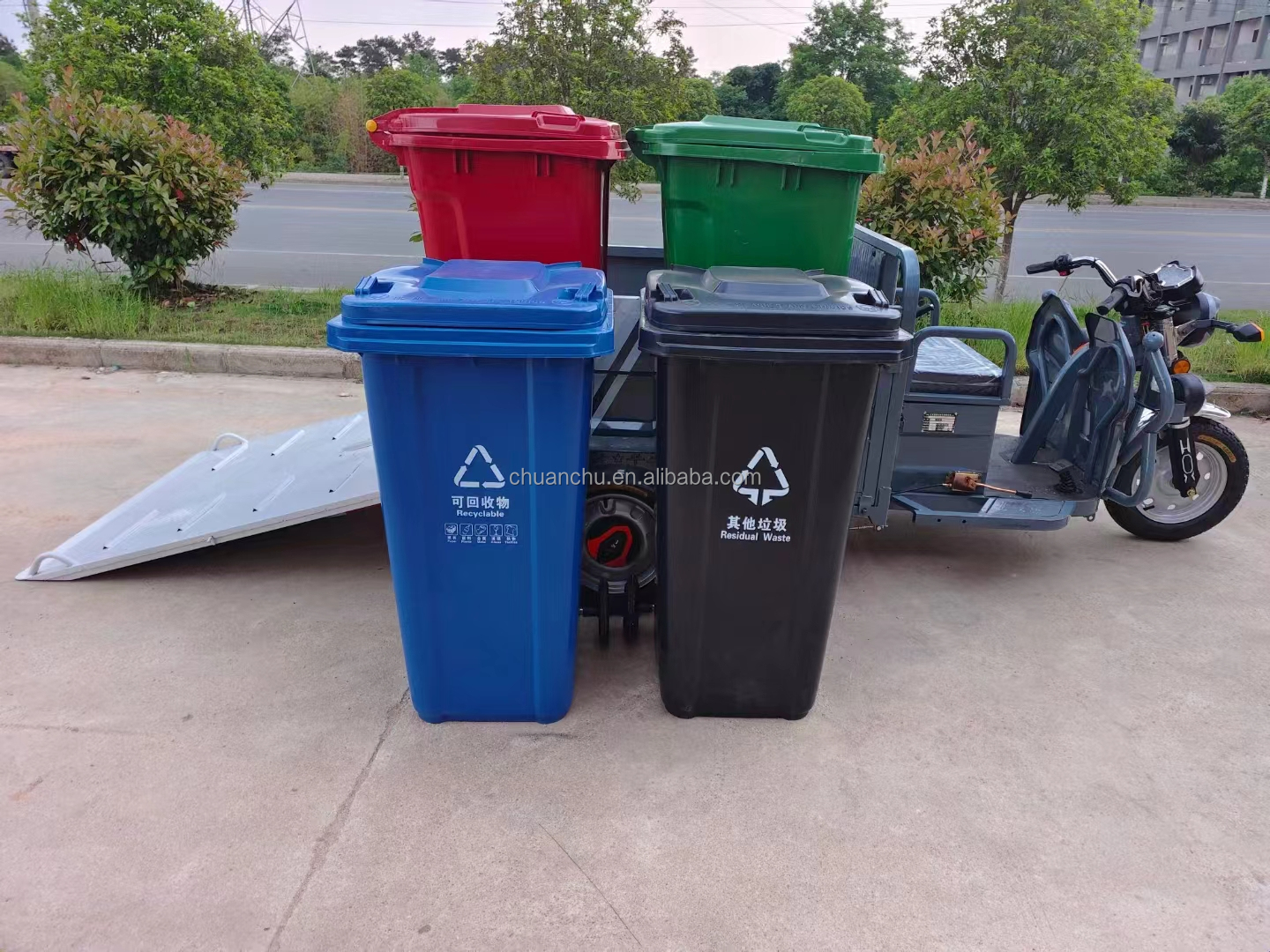

Four Barrels Pure Sanitation Electric Tricycle Garbage Electric Sanitation Truck For Cleaning Images |
